OnlyKem outdoor condensing unit combines the latest compressor technology, variable speed fan motor control, large condenser coils, vapor injection which can deliver high efficiency, reliability, easy installation and sound performance. It is optimized designed and manufactured to reduce installation and maintenance costs, more efficient while making your production even more efficient and less noise impact for neighborhood. Our outdoor condensing units have various designs and come in many sizes ranging from small household appliance units to very large industrial units which are excellent suited for typical cold room service and retail applications.

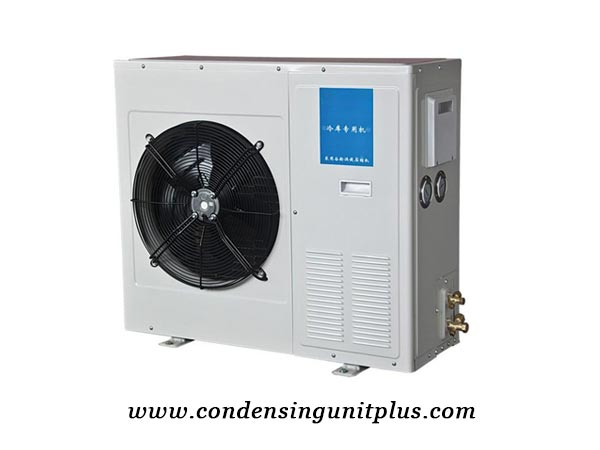

Horizontal Outdoor Condensing Unit
Description
Outdoor Condensing Unit is the most important part of whole commercial cold room system. Onlykem offers the highest energy efficiency famous brand outdoor condensing unit to satisfy your cold storage demands. Our outdoor condensing unit is available in a standard unit power ranging from 1.55 to 4.28 KW which has the function of a heat exchanger to cool down and condense the incoming refrigerant vapor into liquid and a fan to blow outside cooled air through the heat exchanger section to cool the refrigerant inside.
OnlyKem outdoor condensing unit combines the latest compressor technology, variable speed fan motor control, large condenser coils, vapor injection which can deliver high efficiency, reliability, easy installation and sound performance. It is optimized designed and manufactured to reduce installation and maintenance costs, more efficient while making your production even more efficient and less noise impact for neighborhood. Our outdoor condensing units have various designs and come in many sizes ranging from small household appliance units to very large industrial units which are excellent suited for typical cold room service and retail applications.

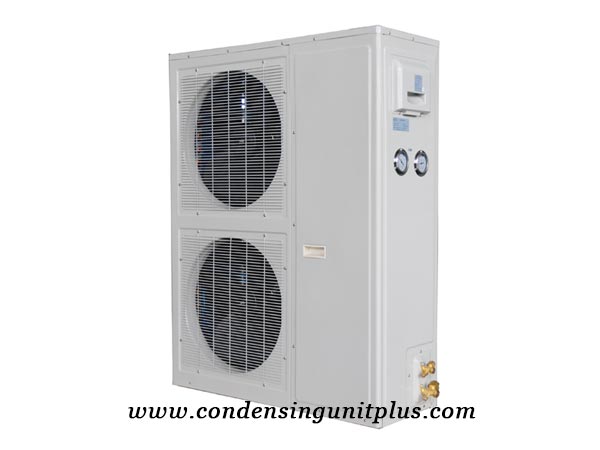

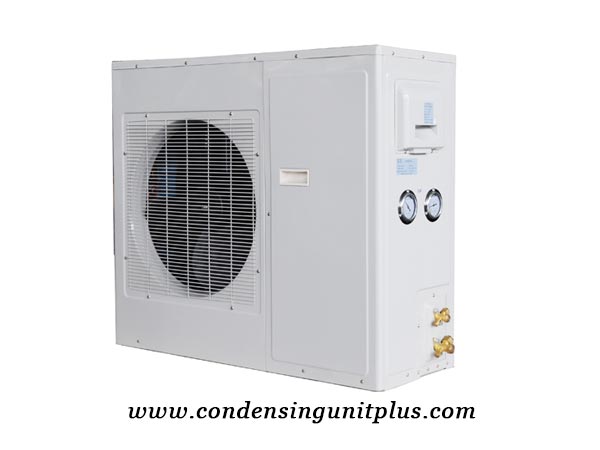

High Quality Horizontal Outdoor Condensing Unit
Horizontal Outdoor Condensing Unit Specifications
| Condensing Unit | Compressor | Cooling Capacity | Condensor | Connection | Dimension | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| Medium Temperature Series | ||||||||||
| Model | Model | Power (KW) | Evap Temp -5°C | Fan Quantity | Diameter (mm) | Air Flow (m³/h) | Fan Power (W) | Suction (mm) | Liquid (mm) | (LxWxH) (mm) |
| OKM02A | ZB15KQE | 1.55 | 4320 | 1 | Φ450 | 2510 | 60 | 16 | 10 | 1010x425x840 |
| OKM03A | ZB21KQE | 2.22 | 6400 | 1 | Φ450 | 2510 | 60 | 16 | 10 | 1010x425x840 |
| OKM04A | ZB29KQE | 2.95 | 8690 | 2 | Φ450 | 5020 | 120 | 19 | 12 | 1020x425x1245 |
| OKM05A | ZB38KQE | 3.76 | 10860 | 2 | Φ450 | 5020 | 120 | 19 | 12 | 1020x425x1245 |
| OKM06A | ZB45KQE | 4.28 | 12750 | 2 | Φ450 | 5020 | 120 | 19 | 12 | 1020x425x1245 |
| Low Temperature Series | ||||||||||
| Model | Model | Power (KW) | Evap Temp -25°C | Fan Quantity | Diameter (mm) | Air Flow (m³/h) | Fan Power (W) | Suction (mm) | Liquid (mm) | (LxWxH) (mm) |
| OKL02A | ZF06KQE | 1.6 | 2110 | 1 | Φ450 | 2510 | 60 | 16 | 10 | 1010x425x840 |
| OKL03A | ZF09KQE | 1.86 | 2860 | 1 | Φ450 | 2510 | 60 | 16 | 10 | 1010x425x840 |
| OKL04A | ZF13KQE | 2.49 | 4150 | 2 | Φ450 | 5020 | 120 | 19 | 12 | 1020x425x1245 |
| OKL05A | ZF15KQE | 3.06 | 5100 | 2 | Φ450 | 5020 | 120 | 19 | 12 | 1020x425x1245 |
| OKL06A | ZF18KQE | 3.67 | 6110 | 2 | Φ450 | 5020 | 120 | 19 | 12 | 1020x425x1245 |
| Reamrk |
|
|||||||||
Horizontal Outdoor Condensing Unit Configurations

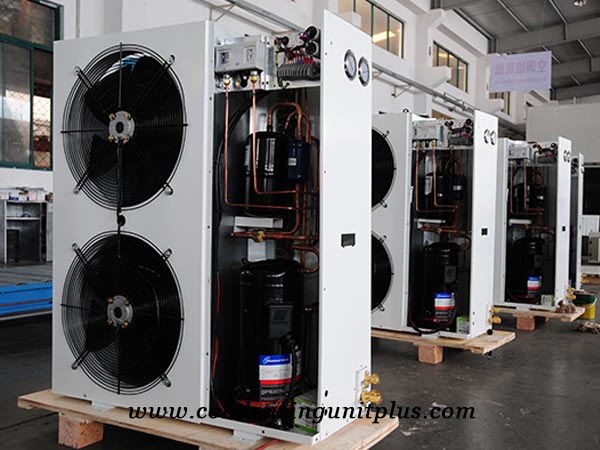

- Compressor, condenser, fan, liquid receiver, HP/LP controller
- HP/LP gauge, dry filter, solenoid valve, sight glass.
- Check valve, junction box, etc.
Horizontal Outdoor Condensing Unit Features
- Integrated modular assembly, pre-equipped refrigeration components in factory.
- Streamlined housing design for a variety applications.
- Full protection for internal electronic components.
- High heat dissipation rate and efficiency.
- More models available to satisfy your demands.
- Compact structure, optimized space for room layout.
- Energy saving, long service life.
- Easy and quick installation.
- High quality, easy to operate.

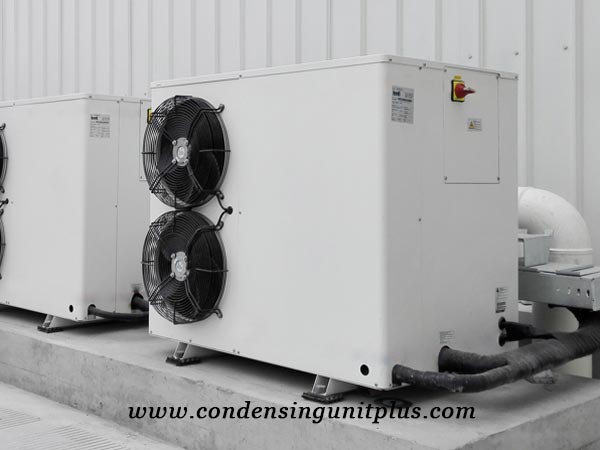

Horizontal Outdoor Condensing Unit Applications
OnlyKem brand outdoor condensing unit for cold room is widely used for milk cooling tanks, cold rooms, freezer rooms, fermentation rooms, canteens, restaurants, hospitals and other cold storage industry.
