FNH Series Air Cooled Condenser

//FNH Series Air Cooled Condenser

FNH Series Air Cooled Condenser

  • Wide range heat transfer area
  • High efficient interchangeability
  • Fit in different compressor
  • Window type or cellular type of aluminum fin for your choice
  • Custom pitch of fins can be adjusted to meet your demands
  • Different alternative condensing fans available.
  • Compact structure
  • Longer serve life
  • Easy to install and maintain

Description

Air cooler condenser is one of the high efficient condensing heat exchangers designed for refrigeration compressor condensing units and multi-compressor units which is widely applied for cold room and freezer room. ONLYKEM brand FNH series air cooled condenser is designed with a fully enclosed, semi-hermetic compressor supporting the use of the condenser. Our air cooled condenser is made of high quality L-shaped aluminum fins, the distance from the bottom of the blade is greater than 1/3 the diameter of the fan which makes sure to reach an effective amount of wind. The heat transfer area ranges from 2 square meters to 170 square meters. Our FNH series air cooled condense is widely used in cold storage room project, refrigeration industry and central air conditioning mainframe equipment, etc.

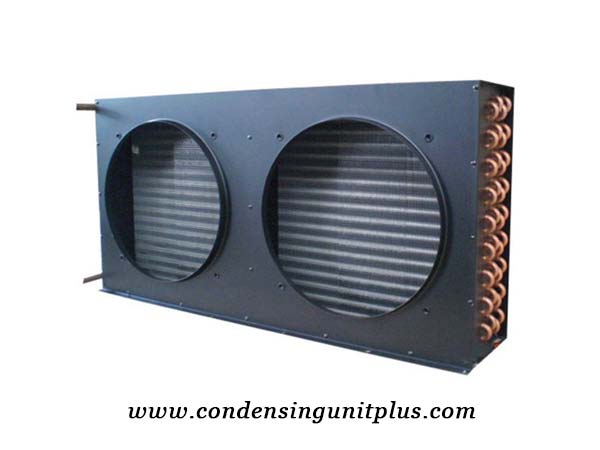

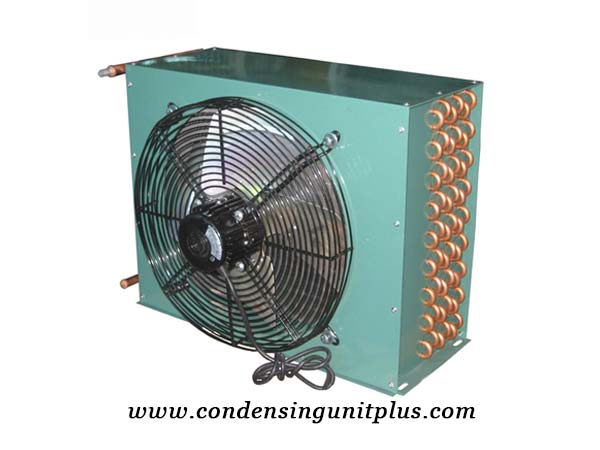

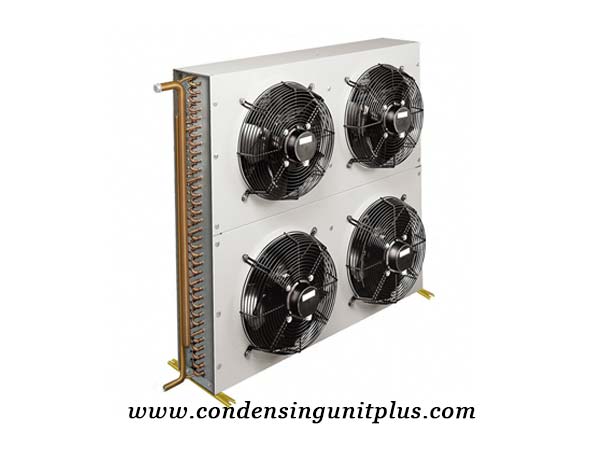

High Quality FNH Series Air Cooled Condenser

High Quality FNH Series Air Cooled Condenser

FNH Series Air Cooled Condenser Specifications

 Model  Fin Surface (m2) Column Fan Data Inlet (Фmm) Outlet (Фmm) Weight (kg)
Qty (pcs) Power (w) Air Flow (m³/h) Diameter (mm) Voltage (V)
FNH-0.6/2 2 2×4.5 1 16 500 200 220 10 10 4
FNH-0.9/3 3 3×4.5 1 16 500 200 220 10 10 4.3
FNH-1.2/4 4 3×4.5 1 40 800 250 220 10 10 6
FNH-1.8/6 6 3×7 1 60 1250 300 220 10 10 8
FNH-2.55/8.55 8 4×7 1 60 1250 300 220 10 10 10.2
FNH-3.6/12 12 4×8 1 150 2350 350 220/380 16 12 13.8
FNH-4.5/15 15 4×9 1 150 2350 350 220/380 16 12 16.5
FNH-5.4/18 18 4×10 1 200 3490 400 220/380 16 12 22
FNH-6.6/22A 22 5X10 1 200 3490 400 220/380 19 16 24
FNH-6.6/22B 22 4X8 2 2X150 2X2350 350 380 19 16 26
FNH-8.4/28 28 4X8 2 2X150 2X2350 350 380 19 16 29
FNH-9.9/33 33 4X9 2 2X200 2X3490 400 380 19 16 36
FNH-12.3/41  41 4×12  2 2X200 2X3490  400 380  19 16 40
FNH-14.7/49  49  4×14 2  2X200 2X3490 400  380 19  16  50
FNH-16.5/55  55  4×14 2 2X200  2X3490 400  380 19 16 54
FNH-18.0/60  60 4×14 2 2X200  2X3490 400 380 22 19 58
FNH-21.0/70 70 4×18  4  4X150  4X2350  350  380 22  19 72
FNH-24.0/80  80 4×20  4 4X150 4X2350 350 380 25 19  81
FNH-30.0/100  100 4×24 4 4X200  4X3490  400 380  30 22 90
FNH-36.0/120 120 4×24 4 4X200  4X3490  400  380 30 22 105
FNH-42.0/140 140 5×24 4 4X250  4X4900 450 380  30 22  128
FNH-45.0/150  150 5×24 4 4X250 4X4900 450 380  30 22  135
FNH-54.0/180  180 6×24 4 4×380 4×6660 500 380  30 22 170



FNH Series Air Cooled Condenser Features

  • Wide range heat transfer area
  • High efficient interchangeability
  • Fit in different compressor
  • Window type or cellular type of aluminum fin for your choice
  • Custom pitch of fins can be adjusted to meet your demands
  • Different alternative condensing fans available.
  • Compact structure
  • Longer serve life
  • Easy to install and maintain
