- Two sided cooled air flow
- Heavy gauge textured aluminum or galvanized case
- Hinged drain pan for easy access
- Center mounts – flush to the ceiling to maximize headroom and space
- Fan motors permanently lubricated with thermal overload protection
- Quiet operation ideal for use in rooms with glass doors
- Available as single through six fan models
- Compact structure
- Longer serve life
- Easy to install and maintain

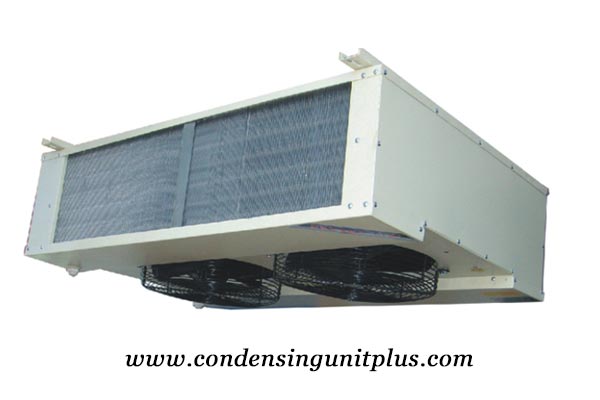

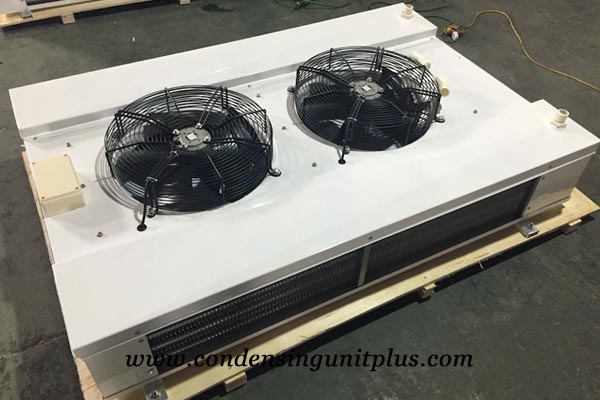

Dual Discharge Evaporator
Description
Evaporator (unit cooler) is specially designed for use in walk-in cold rooms and freezers with very low headroom clearance and low air flow. The dual discharge evaporator features two-way air flow to provide for even circulation and temperature, hinged drain pan for easy serviceability, and are available in air and electric defrost models. ONLYKEM dual discharge air cooled evaporator is made with heavy gauge textured aluminum or galvanized case, inner-grooved copper tube to enhance heat transfer performance. All the circuit is optimized designed to make refrigerant well distributed and fully evaporated. It is very suitable for small food cold storage room with low air flow.

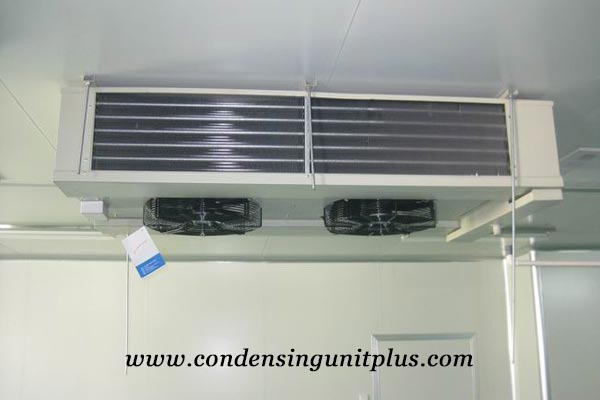

High Performance Dual Discharge Cold Room Evaporator
Dual Discharge Evaporator Specifications
| SDL Series Dual Throw | ||||||||||||
| Model | Nominal Capacity (W) | Surface (m2) | Fan Data (380V) | Electric Defrost | Connection | Weight (kg) | Shape Size (mm) | |||||
| Power (W) | Air Flow (m³/h) | Diameter (Фmm) | Range (m) | Coil (Kw) | Drip Pan (Kw) | Inlet (Фmm) | Outlet (Фmm) | LxWxH | ||||
| SDL-8.2/40 | 8200 | 40 | 2×200 | 2×3490 | 400 | 5 | 2.0 | 1.0 | 16 | 25 | 80 | 1420x950x320 |
| SDL-11.5/55 | 11500 | 55 | 2×200 | 2×3490 | 400 | 5 | 2.0 | 1.0 | 16 | 25 | 85 | 1520x950x370 |
| SDL-16.7/80 | 16700 | 80 | 2×250 | 2×4900 | 450 | 7 | 2.4 | 1.2 | 19 | 30 | 110 | 1820x1000x420 |
| SDL-22.0/105 | 22000 | 105 | 2×250 | 2×4900 | 450 | 7 | 2.4 | 1.2 | 19 | 30 | 125 | 1820x1100x420 |
| SDL-25.8/130 | 25800 | 130 | 3×250 | 3×4900 | 450 | 7 | 3.2 | 1.6 | 19 | 38 | 165 | 2300x1100x420 |
| SDL-33.6/160 | 33600 | 160 | 3×250 | 3×4900 | 450 | 7 | 4.0 | 2.0 | 19 | 38 | 185 | 2720x1100x420 |
| SDL- 38.7/185 | 38700 | 185 | 4×250 | 4×4900 | 450 | 7 | 4.4 | 2.2 | 25 | 45 | 220 | 3120x1100x420 |
| SDL-44.0/210 | 44000 | 210 | 4×250 | 4×4900 | 450 | 7 | 5.0 | 2.5 | 25 | 45 | 260 | 3520x1100x420 |
| 1. SDL series unit cooler, nominal capacity based on Tr=0°C, ΔT=7°C
2. Fin space=4.5mm |
||||||||||||
| SDD Series Dural Trow | ||||||||||||
| SDD-6.0/30 | 6000 | 30 | 2×200 | 2×3490 | 400 | 5 | 2.0 | 2.0 | 16 | 25 | 80 | 1420x950x320 |
| SDD-8.0/40 | 8000 | 40 | 2×200 | 2×3490 | 400 | 5 | 2.0 | 2.0 | 16 | 25 | 85 | 1520x950x370 |
| SDD- 12.0/60 | 12000 | 60 | 2×250 | 2×4900 | 450 | 7 | 4.8 | 2.4 | 19 | 30 | 110 | 1820x1000x420 |
| SDD-16.0/80 | 15900 | 80 | 2×250 | 2×4900 | 450 | 7 | 4.8 | 2.4 | 19 | 30 | 125 | 1820x1100x420 |
| SDD-20.0/100 | 20000 | 100 | 3×250 | 3×4900 | 450 | 7 | 6.4 | 3.2 | 19 | 38 | 165 | 2300x1100x420 |
| SDD-24.0/120 | 24000 | 120 | 3×250 | 3×4900 | 450 | 7 | 8.0 | 4.0 | 19 | 38 | 185 | 2720x1100x420 |
| SDD-28.0/140 | 28000 | 140 | 4×250 | 4×4900 | 450 | 7 | 8.8 | 4.4 | 25 | 45 | 220 | 3120x1100x420 |
| SDD-32.1/160 | 32100 | 160 | 4×250 | 4×4900 | 450 | 7 | 10.0 | 5.0 | 25 | 45 | 260 | 3520x1100x420 |
|
1. SDL series unit cooler, nominal capacity based on Tr=0°C, ΔT=7°C 2. Fin space=6.0mm |
||||||||||||
Dual Discharge Evaporator Features
- Two sided cooled air flow
- Heavy gauge textured aluminum or galvanized case
- Hinged drain pan for easy access
- Center mounts – flush to the ceiling to maximize headroom and space
- Fan motors permanently lubricated with thermal overload protection
- Quiet operation ideal for use in rooms with glass doors
- Available as single through six fan models
- Compact structure
- Longer serve life
- Easy to install and maintain
About ONLYKEM
Onlykem Technology Co., Ltd had been dedicated in manufacturing and supplying high quality cold room and refrigeration unit solutions to worldwide customers for over 10 years. We have over 20 professional cold room experts and 8,000 square meters factory. Our innovative, high quality products and solutions include cold room, freezer room, condensing unit, air cooled condensers, unit cooler, cold room door and PU panel, etc. We had provided many types of effective and states of the cold room and key parts to over 36 countries.
ONLYKEM is not only manufacturing best quality cold rooms and refrigeration units but also providing professional custom design, fabrication and installation service. OEM, ODM are also available. If you have any questions or inquiries, please fill and submit the following form, we will reply as soon as possible.
